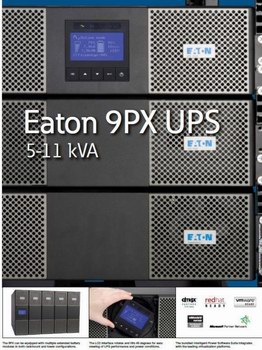

 | | 名称：伊顿 9PX系列5~11KVA | |  |  | | 伊顿UPS 9PX系列(5~11KVA)是伊顿集团全新推出的新一代高智能、高可靠性和广泛适用性的高频在线式UPS电源。将取代当前市场上的9135系列，MX系列与EX RT 1:1产品（EX RT 3:1产品继续销售）。在这些受市场好评产品的基础上，结合了伊顿公司在UPS技术上领导性的创新，所推出的9PX具有鲜明的特点和稳定的可靠性，能够为IT高密度机柜应用，工业和制造环境以及医疗设备应用提供安全、可靠与高效的电力保护。
性能特点：
• 最高效率的小型UPS
• 市电模式可达95%效率，同类产品业界第一
• 节能模式可达98%的输出效率
• 0.9输出功因，比竞争对手产品能够多带28%的负载
• 最适合操作的大屏幕三维LCD
• LCD屏既可以沿自身平面圆心180度旋转以适应R/T互换，又可以沿水平中心轴调整LCD观察角度，以适应工作人员查看和操作
• 可通过LCD实时读取负载用电量状况
• 可对负载进行分区操作和管理
• 支持双输入的小UPS
• 8K和11K机型可支持旁路和市电双电源输入
• 使用并机组件可实现1+1并机（该功能于2013年上市）
• ABM电池管理技术延长电池寿命50%以上
• 全面支持虚拟化IT系统
• 伊顿UPS是业内最先支持虚拟化IT系统的电源
• 全面支持VMware, Microsoft Hyper-V, Citrix虚拟化系统
• 支持关断虚拟服务器，支持虚拟服务器实时迁移
技术参数：
Eaton 9PX 5-11kVA UPS Technical Specification
CONSTRUCTION
|
Model |
9PX5Ki |
9PX6Ki |
9PX8Ki |
9PX11Ki |
|
Rating |
5kVA/4.5kW |
6kVA/5.4kW |
8kVA/7.2kW |
11kVA/10kW |
|
Power Factor |
0.9 |
0.91 |
|
Technology |
VFI-SS-111, on-line double conversion with power factor correction |
|
Dimensions: W x D x H (mm)
Rack Configuration: |
440 x 685 x 130 (3U) |
Power Module: 440 x 700 x 130 (3U) Battery Module: 440 x 680 x 130 (3U) |
|
Dimensions: W x D x H (mm)
Tower Configuration: |
130 x 685 x 440 |
260 x 700 x 440 (combined) |
|
Weight (kg) |
48kg |
Total: 84kg (Power Mod: 19kg) (Battery: 65kg) |
Total: 86kg (Power Mod: 21kg) (Battery: 65kg) |
|
Colour |
Black, RAL 9005 |
ENVIRONMENTAL & SAFETY
|
Ambient storage temperature |
0C to +35C with batteries and -15C to +60C without batteries |
|
Ambient service temperature |
Power electronics part: 0 to +40C
Battery part: +5 to +25C without reducing battery life |
|
Maximum service altitude |
1000m above sea level, 10% de-rating for every 1000m to 3000m maximum |
|
Relative humidity |
0 to 95%, no condensation allowed |
|
Degree of protection |
IP20 (EN60529) |
|
Acoustic Noise @ 1m |
≤45dB 5/6kVA, ≤48dB 8kVA, ≤50dB 11kVA Online mode at nominal conditions, battery fully charged |
|
Safety Conformance |
IEC 62040-1:2008, IEC 60950-1:2005, UL 1778 4th (5 & 6kVA UPS, 8 &
11kVA Power modules) |
|
Electromagnetic Compatibility |
IEC 62040-2:2006 Categories C2, CISPR22 Class A, FCC part 15 Class A (5 & 6kVA UPS, 8 & 11kVA Power modules) |
|
Agency Markings |
CE, C−Tick, UL (5 & 6kVA UPS, 8 & 11kVA Power modules |
POWER CONNECTIONS
|
Input |
5/6kVA: Terminals (up to 10mm2), 8/11kVA: Terminals (up to 16mm2) |
|
Output |
5/6kVA (without MBP): Terminals (up to 10mm2), +(2) IEC16A, +(4) IEC10A
programmable Group 1, +(4) IEC10A programmable Group 2
5/6kVA (with MBP): Terminals (up to 10mm2), +(2) IEC16A, +(3) IEC10A
8/11kVA (without MBP): Terminals (up to 16mm2)
8/11kVA (with MBP): Terminals (up to 16mm2) +(4) IEC16A |
USER INTERFACE
|
Display |
Graphical Blue LCD with LED backlight, 4x LEDs for notice and alarm |
|
Standard Communication Ports |
(1)USB 2.0, (1)RS232;DB9, (1)Relay Port;DB9, (1)Remote Power Off Port, (1)Remote On/Off Port, (1)Minislot Port (Empty), (1)Parallel Port;DB15 |
|
Relay Port Voltage Free Contacts |
On Mains, On Automatic Bypass, On Battery, Battery Low, Load Protected |
|
Output Relay Specifications |
250V AC, 5A |
|
Optional |
Minislot cards; Web/SNMP, Relay, ModBus |
ELECTRICAL CHARACTERISTICS - INPUT
|
Number of input phases |
1 Phase (Separate Rectifier and Bypass inputs available on 8-11kVA) |
|
Rated input voltage and voltage tolerance |
Rectifier: 230Vac nominal (200, 208, 220, 240, 250V* Selectable**)
Tolerance: 176-276V (-23% to +20%) at 100% load,
150-276V (-35% to +20%) at 80% load,
125-276V (-45% to +20%) at 60% load,
100-276V (-56% to +20%) at 40% load
Bypass: 187-264V*** at nominal 230V (-20%, +15% of nominal)
*250V available only on 8/11kVA
**De-rate for 11kVA. 200/208/250V: -10% kVA/kW, 220V: -1% kW
***Can be set to 160-264V, or up to 100-264V if unsynchronised bypass transfer function is enabled |
ELECTRICAL CHARACTERISTICS – INPUT (continued)
|
Model |
9PX5Ki |
9PX6Ki |
9PX8Ki |
9PX11Ki |
|
Operating Frequency / Tolerance |
50/60Hz Auto-sensing
Tolerance 50Hz nominal: 40-60Hz before transfer to battery
Tolerance 60Hz nominal : 50-70Hz before transfer to battery |
|
Input current distortion |
<5% THDi (nominal input voltage, full load and battery fully charged) |
|
Input power factor |
≥0.99pf |
|
Inrush Current |
≤800% of rated RMS current |
|
UPS Nominal Input Current @
230V with batteries fully charged |
21A |
25.2A |
33.1A |
45.8A |
|
Recommended protection circuit rating (D Curve) |
32A |
50A |
80A |
ELECTRICAL OUTPUT CHARACTERISTICS – NORMAL MODE
|
Rated apparent/active power |
5kVA/4.5kW |
6kVA/5.4kW |
8kVA/7.2kW |
11kVA/10kW |
|
Number of output phases |
1 Phase |
|
Load power factor range |
0.5 lagging to 0.5 leading |
|
Rated output voltage |
230Vac nominal (200, 208, 220, 240, 250V* Selectable**)
*250V available only on 8/11kVA
**De-rate for 11kVA: 200/208/250V -10% kVA/kW, 220V -1% kW |
|
Steady state voltage variation |
±1% |
|
Dynamic voltage regulation &
recovery time |
±6% for 20%→100%→20% Resistive Load
±9% for 0%→100%→0% Resistive Load
Recovery time 100ms to 90% Vnom after 0%→100%→0% non-linear load
(IEC62040-3 reference) step |
|
Crest factor |
3:1 |
|
Rated output frequency |
50Hz (default) or 60Hz |
|
Output frequency regulation |
When synchronised: ±5% default, selectable ±1% to ±10% Unsynchronised (or on battery mode or frequency converter mode) ±0.5% |
|
Frequency Slew Rate |
1Hz/s (0.5 Hz/s in Hot Standby configuration) |
|
Total output voltage distortion |
<2% linear load; <5% non-linear load (IEC62040-3 reference) |
|
Overload capability |
100-102%: No alarm
102-110%: Load transfers to bypass after 2 minutes
110-125%: Load transfers to bypass after 1 minute
125-150%: Load transfers to bypass after 10 seconds
>150%: Load transfers to bypass after 500ms
Maximum current: 90A for 5/6kVA models, 120A for 8kVA, 150A for 11kVA |
|
Overload capability (bypass mode) |
100-125%: No alarm
125-150%: UPS shuts down after 1 minute
>150%: UPS shuts down after 1 second |
ELECTRICAL OUTPUT CHARACTERISTICS – STORED ENERGY
|
Rated apparent/active power |
5kVA/4.5kW |
6kVA/5.4kW |
8kVA/7.2kW |
11kVA/10kW |
|
Waveform |
Sine Wave |
|
Transfer–normal to stored energy |
No break |
|
Load power factor range |
0.5 lagging to 0.5 leading |
|
Rated output voltage |
230Vac nominal (200, 208, 220, 240, 250V* Selectable**)
*250V available only on 8/11kVA
**De-rate for 11kVA: 200/208/250V -10%, 220V -1% kW |
|
Steady state voltage variation |
±1% |
|
Dynamic voltage regulation &
recovery time |
±6% for 20%→100%→20% Resistive Load
±9% for 0%→100%→0% Resistive Load
Recovery time 100ms to 90% Vnom after 0%→100%→0% non-linear load
(IEC62040-3 reference) step |
ELECTRICAL OUTPUT CHARACTERISTICS – STORED ENERGY (continued)
|
Model |
9PX5Ki |
9PX6Ki |
9PX8Ki |
9PX11Ki |
|
Crest factor |
3:1 |
|
Rated output frequency |
50Hz (default) or 60Hz |
|
Output frequency regulation |
±0.5% |
|
Total output voltage distortion |
<2% linear load; <5% non-linear load (IEC62040-3 reference) |
|
Efficiency |
>91% |
|
Overload capability |
102-130% 10s, >130% 100ms |
EFFICIENCY (Input/Output)
|
Efficiency at 100% load (On Line
Mode/High Efficiency Mode) |
>93.5% / 98% |
>94.5% / >98% |
>95% / 98% |
|
Battery Management |
Advanced Battery Management (ABM®) = 90% resting, 10%
floating/charging. Automatic battery testing, deep discharge protection, automatic recognition of battery modules, float temperature compensation -
3mV per oC (25oC nominal) |
|
Battery Nominal Voltage |
5/6kVA:180V (90 Cells),8/11kVA: 240V (120 cells) |
|
Charging Current |
5/6kVA: 1A ±20%, 8/11kVA: 1.7A ±20% (Additional 12A for 8/11kVA
available with Supercharger option) |
|
UPS Standard Battery
Configuration |
5/6kVA: 15 x 12V 5 Ah internal batteries, VRLA, AGM
8/11kVA battery module (EBM): 20 x 12V 9 Ah batteries, VRLA, AGM |
|
EBM Configuration |
5/6kVA: 2 strings of 15 x 12V 5 Ah batteries
8/11kVA: 1 string of 20 x 12V 9 Ah batteries |
|
Battery Replacement |
Hot-swappable internal and external batteries |
|
Battery Run Times 9PX5Ki* |
Internal |
+ 1 EBM |
+ 2 EBMs |
+ 3 EBMs |
+ 4 EBMs |
|
Minutes @ 100% load, 0.9pf |
3.5 |
20 |
38 |
54 |
80 |
|
Recharge time to 90% capacity |
1.5h |
7.1h |
13.7h |
19.4h |
27.4h |
|
Battery Run Times 9PX6Ki* |
Internal |
+ 1 EBM |
+ 2 EBMs |
+ 3 EBMs |
+ 4 EBMs |
|
Minutes @ 100% load, 0.9pf |
3 |
16 |
28 |
47 |
58 |
|
Recharge time to 90% capacity |
1.5h |
7.1h |
13.7h |
19.4h |
27.4h |
|
|
|
|
|
|
|
|
Note: 4 EBMs recommended for 5/6kVA, maximum 12 EBMs possible
|
Battery Run Times 9PX8Ki* |
Std EBM |
+1 EBM |
+2 EBMs |
+3 EBMs |
+4 EBMs |
+5 EBMs |
|
Minutes @ 100% load, 0.9pf |
5 |
16 |
27 |
36 |
50 |
65 |
|
Recharge time to 90% capacity |
1.52h |
4.6h |
7.7h |
9.8h |
13.6h |
17.9h |
|
Battery Run Times 9PX11Ki* |
Std EBM |
+1 EBM |
+2 EBMs |
+3 EBMs |
+4 EBMs |
+5 EBMs |
|
Minutes @ 100% load, 0.9pf |
3 |
10 |
18 |
25 |
34 |
42 |
|
Recharge time to 90% capacity |
1.43h |
2.72h |
6.8h |
9.2h |
12.4h |
15h |
Note: 6 EBMs recommended for 8/11kVA, maximum 12 EBMs (or 400Ah) possible with additional charger (Supercharger option) Contact Eaton for run times with 7-12 EBMs or large external batteries.
*Battery times are approximate and vary depending on age, temperature, load configuration and battery charge.
BYPASS CHARACTERISTICS
|
Type of bypass |
Automatic Static Bypass
Common Mains & Bypass input for 5/6kVA Separable Mains & Bypass input for 8/11kVA |
|
Transfer time |
0ms (10ms or 20ms unsynchronised transfer to bypass can be selected)
<10ms transfer time when exiting from High Efficiency mode |
|
Maintenance Bypass |
Optional Maintenance Bypass Panel (MBP) fitted to rear, side or top of UPS, or mounted separately. Provides make before break transfer, enabling isolation, removal & replacement of UPS/Power module without disruption |
PARALLELING CHARACTERISTICS
|
Maximum number of modules |
2 modules in parallel for 1 + 1 redundancy or capacity |
|
Load sharing error |
<5% | | | | 点击次数：10861 |  |
|
|
|
|
